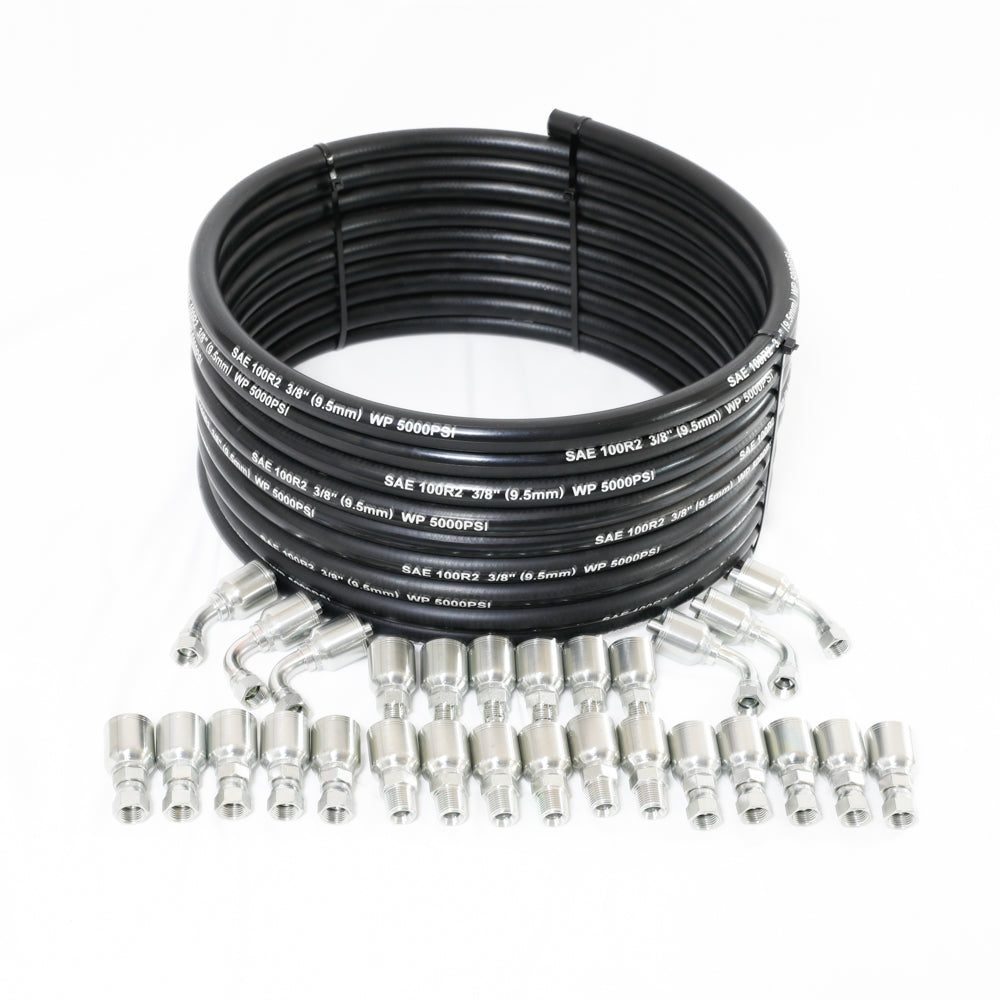

BOM# HR02-06100-1
Fitting list:

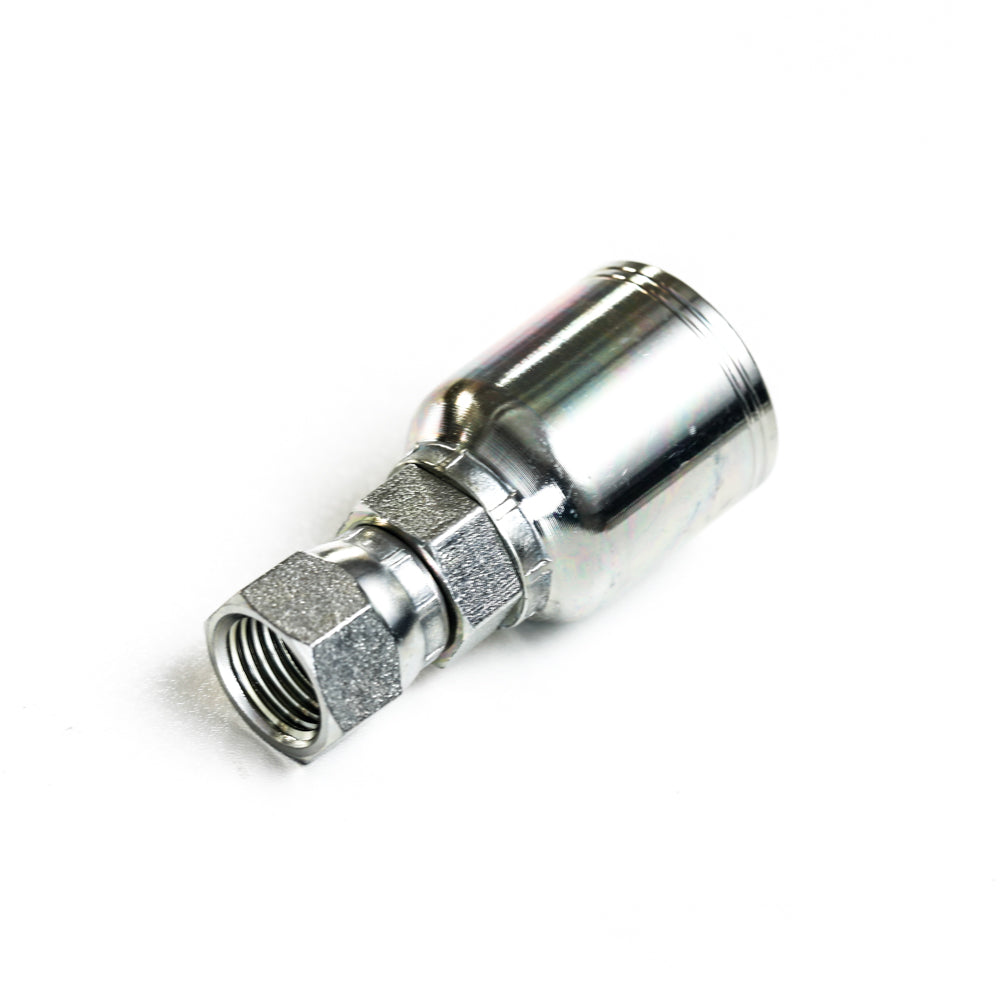

(10x) 3/8 JIC (9/16-18) Female Swivel,

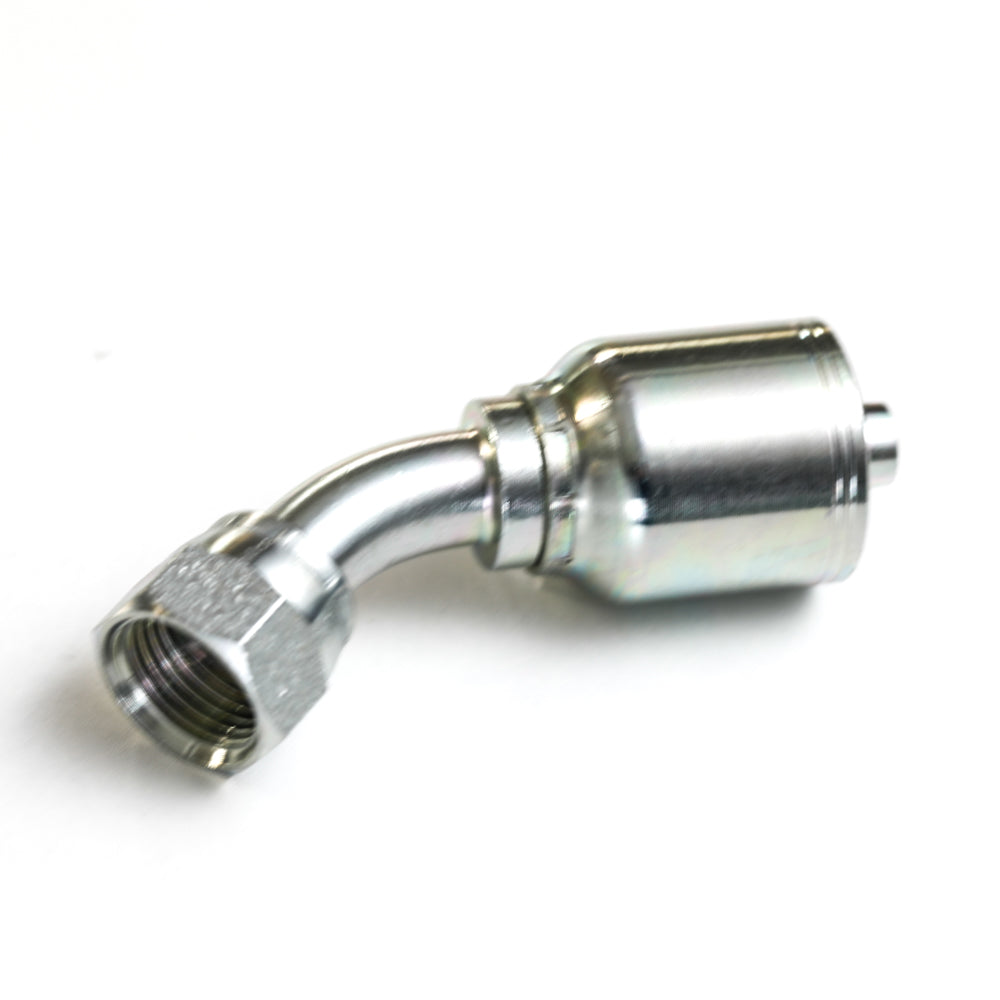

（2x)3/8 JIC (9/16-18) 45°Elbow Female Swivel,

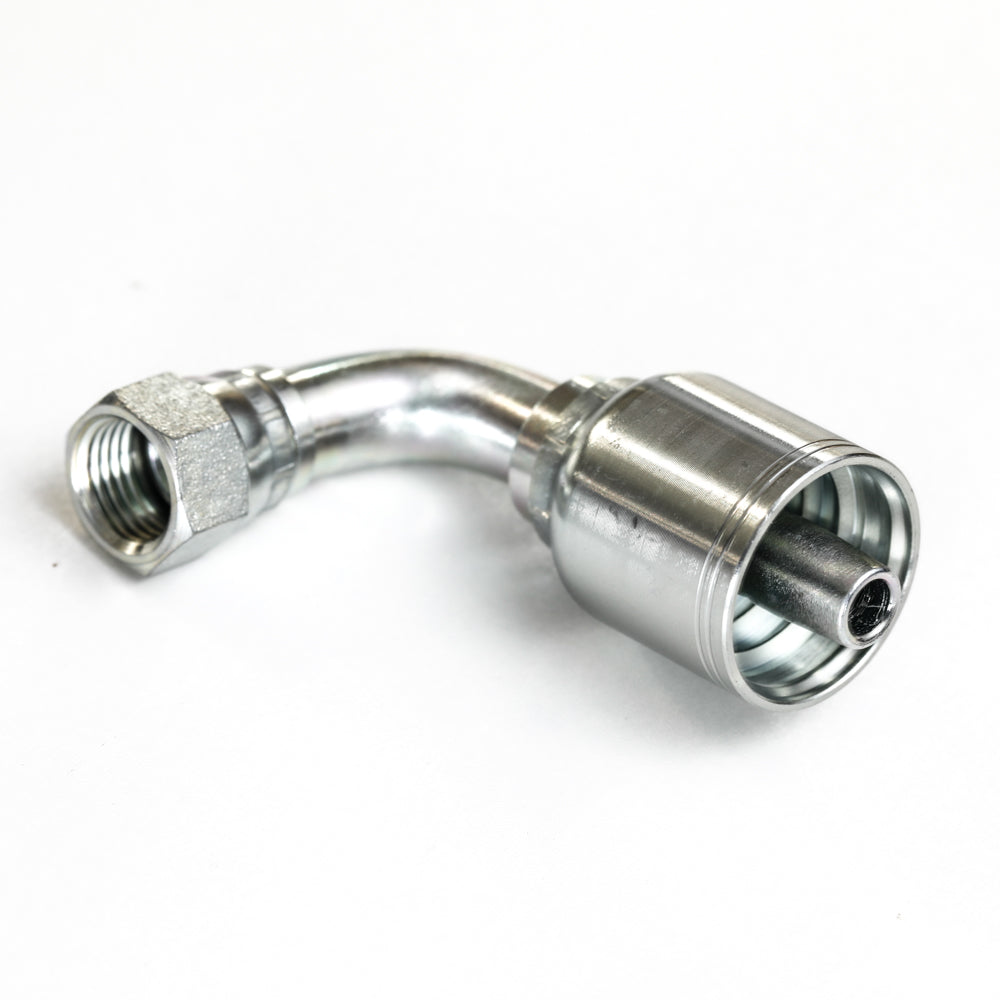

(4x) 3/8 JIC (9/16-18) 90°Elbow Female Swivels,

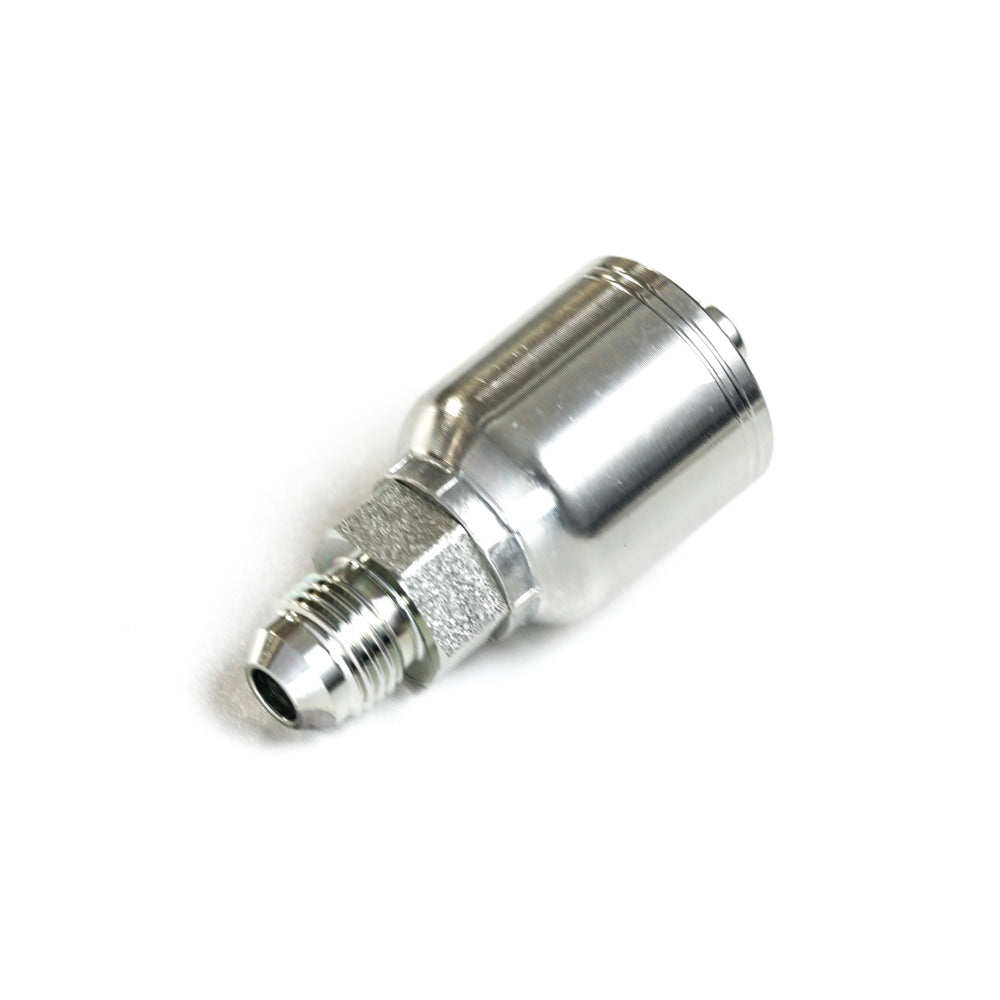

(6x) 3/8 JIC (9/16-18) Male,

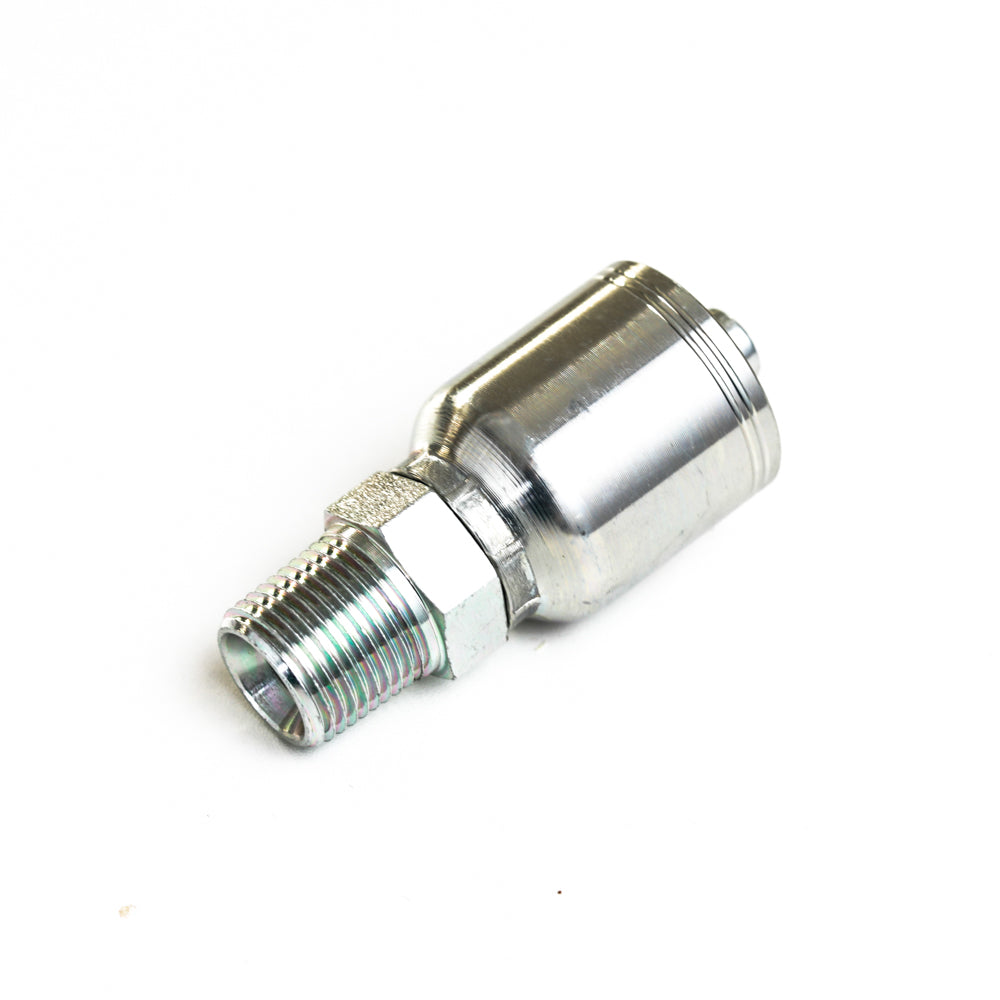

(6x) 3/8 Male Pipe (3/8-18NPTF).
1.Pressure Rating: It is rated for a maximum working pressure of 5000 psi . This makes it ideal for many standard hydraulic systems found in machinery, presses, and construction equipment，Hydraulic lines for mobile machinery (tractors, loaders, excavators).
2.Temperature Range: The hose is designed to operate effectively within a temperature range of -40°F to +212°F (-40°C to +100°C). This ensures reliable performance in both cold and hot environments.
3.Fluid Compatibility: Excellent resistance to petroleum-based hydraulic oils, lubricants, and most water-glycol fluids. It is not recommended for use with phosphate ester fluids (e.g., Skydrol).
4.Impulse Resistance: Meets SAE standards for impulse cycles, ensuring durability under pressure surges common in hydraulic systems.
5.The 3/8" designation refers to the inner diameter, which is approximately 0.375 inches (9.5 mm).
6.The hose conforms to the SAE 100R2 specification, ensuring consistent dimensions, performance, and interchangeability between different manufacturers.
